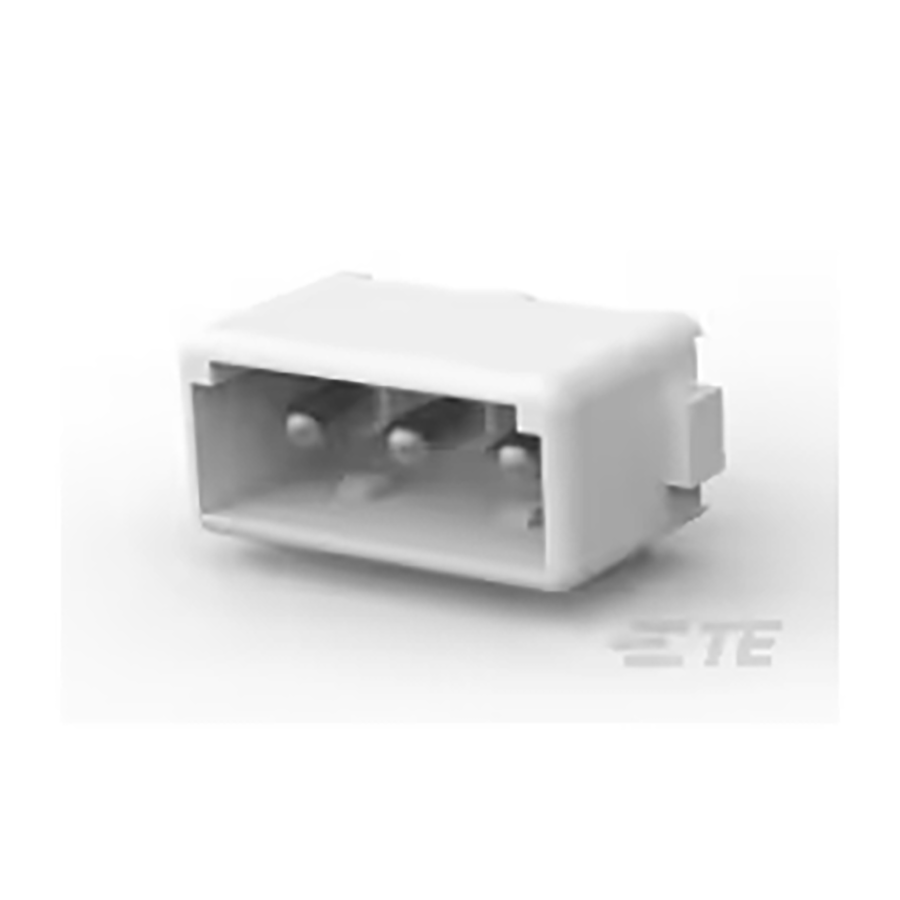

350210-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350210-1
Datasheet:
Description:
IC and Component Sockets Through Hole Header Number of Positions:3 Number of Rows:1 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 5.08 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94V-2 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Active |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 3 |
| Mounting Style | Through Hole, Solder, PCB |
| lead free status | Lead Free |
| operating temperature | 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 4 mΩ |
| size width | 8.38 mm |
| size length | 18.2 mm |
| size height | 9.53 mm |
| voltage rating ac | 250 V |
| elv compliant | Compliant |
| Housing Color | Natural |
| pin pitch | 5.08 mm |
| number of mating cycles | 50 |
| Contact Finish - Mating | Tin |
Stock: 506
Distributors
pcbx
pcbxUnit Price$0.89503
Ext.Price$0.89503
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89503 | $0.89503 |
| 10 | $0.75900 | $7.59000 |
| 25 | $0.71891 | $17.97275 |
| 50 | $0.68093 | $34.04650 |
| 100 | $0.64497 | $64.49700 |
| 300 | $0.60935 | $182.80500 |
| 500 | $0.57570 | $287.85000 |
| 1000 | $0.54822 | $548.22000 |
| 3000 | $0.51797 | $1553.91000 |
| 5000 | $0.48939 | $2446.95000 |
| 10000 | $0.46606 | $4660.60000 |
